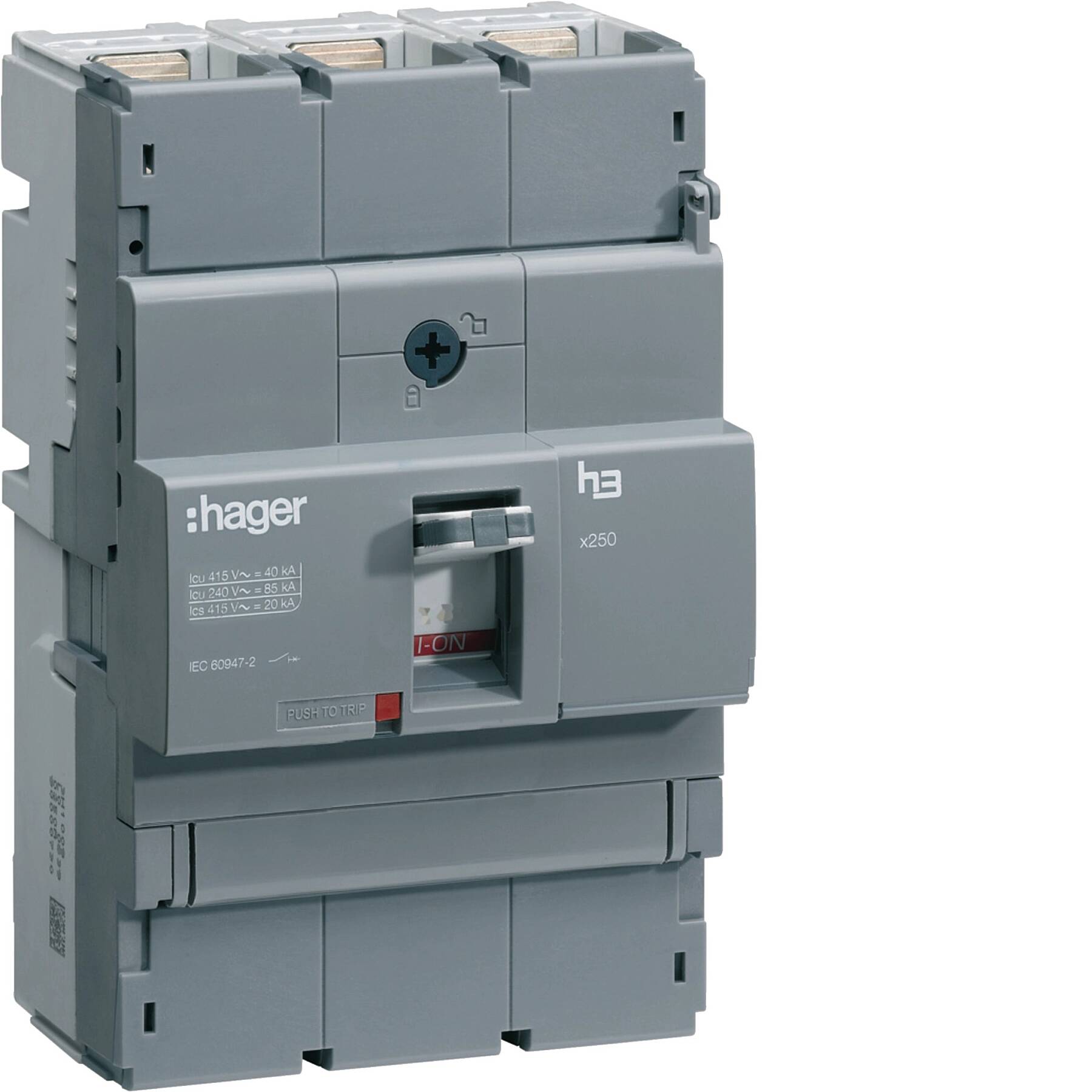

100A 40kA Kompakt ŞALTER Hager

100A 40kA Kompakt ŞALTER Hager

Hager 100A 40kA Kompakt ŞALTER; pano ve elektrik tesisatlarında kullanılan orijinal Hager şalt aksesuarıdır.

Orijinal Hager ürünüdür, CE belgelidir ve ilgili IEC/EN standartlarına uygundur.

Kullanım Alanları

• Elektrik dağıtım panoları: Bina ve tesis panolarında montaj
• Pano imalatı ve bakım: Mevcut Hager tesisleri için orijinal yedek

Teknik Özellikler

• Rated current IN: 100 A
• Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2: 40 kA
• Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2: 85 kA
• Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2: 4 kA
• Rated current 10°C according to IEC 60947: 125 A
• Rated current 15°C according to IEC 60947: 122.20 A
• Rated current 20°C according to IEC 60947: 119.30 A
• Rated current 25°C according to IEC 60947: 116.20 A
• Rated current 30°C according to IEC 60947: 113.20 A
• Rated current at 35°C according to IEC 60947: 110 A
• Rated current at 40°C according to IEC 60947: 106.80 A
• Rated current 45°C according to IEC 60947: 103.40 A
• Rated current 50°C according to IEC 60947: 100 A
• Rated current 55°C according to IEC 60947: 96.40 A
• Rated current at 60°C according to IEC 60947: 92.80 A
• Rated current 65°C according to IEC 60947: 89.10 A
• Rated current 70°C according to IEC 60947: 85.40 A
• Number of poles: 3

Avantajları

• Orijinal Hager
• Uygun fiyat, hızlı kargo
